PRC-4090 HF SDR Tactical Transceiver
- 1.5 – 30MHz – CNR (Combat Net Radio)
- Software defined transceiver core with advanced digital

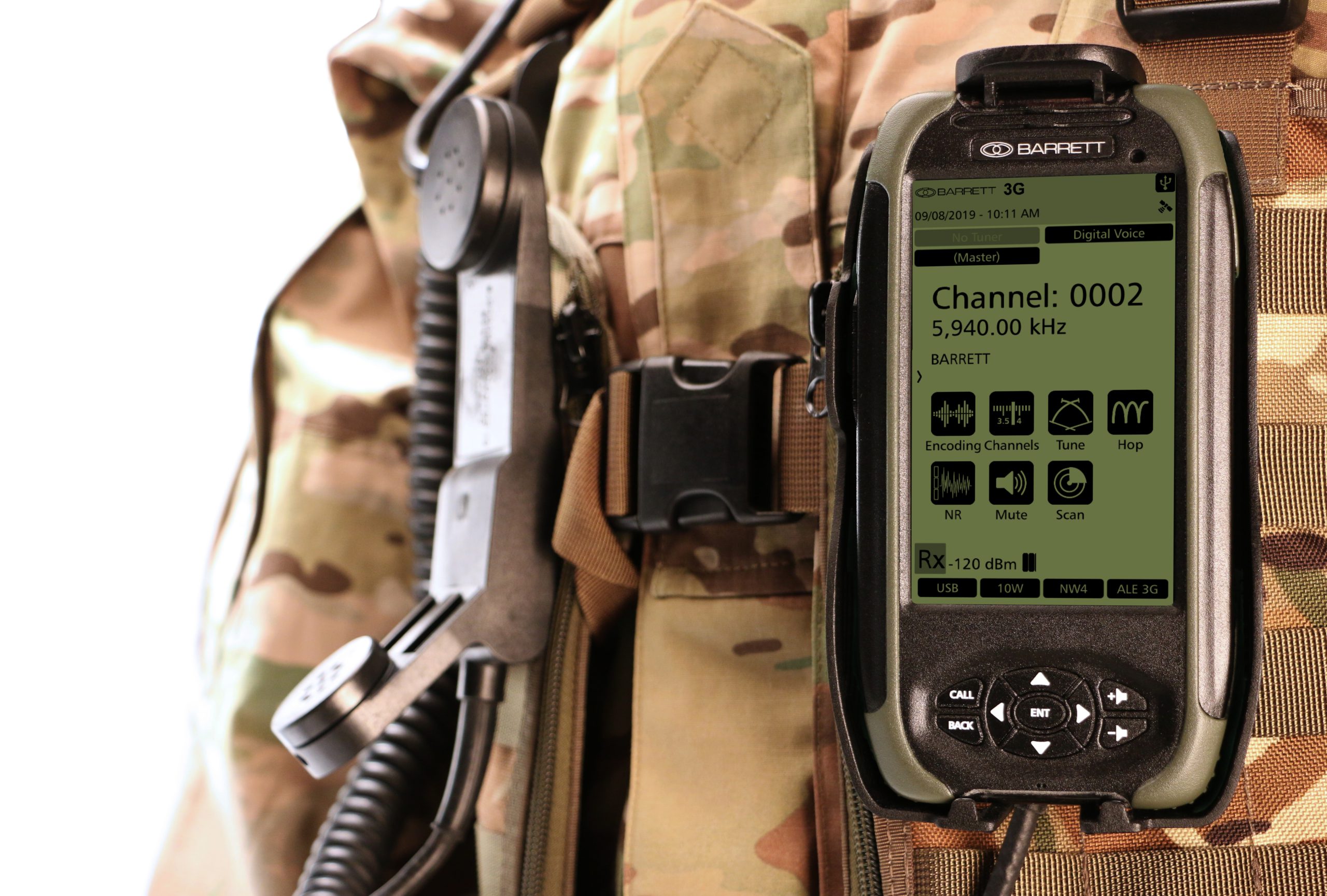

signal processing (DSP) - Lightweight, rugged, and compact with detachable control handset
- Digital voice & secure digital voice options
- Frequency hopping options
- Fully submersible to 1m / 3.3ft (810G) for 30 minutes
- Integrated 150 watt power amplifier that offers platform versatility between manpack, base, and vehicle platforms
- Intuitive and user-friendly interface for simplified programming, operation and deployment
- Multi-language menu support
- 2G (JITC) & 3G Automatic Link Establishment (ALE) option
- On-board high-speed data transmission waveforms (Clover 2000/2500/3000 & STANAG’s 4538 & 4539, MIL-STD-110C)
- IP Network connectivity
- Digital Voice: Auto baud rates 600/700, 1200, 2400 (MELP/TWELP)
- AES-256 or DES-56 encryption
- Frequency Hopping, 5 or 25 hops per second
- 2G & 3G ALE (MIL STD 188-141B & STANAG 4538)
